cisco-wnc-exporter

A third-party Prometheus Exporter for Cisco C9800 Wireless Network Controller.

Overview

This exporter allows a prometheus instance to scrape metrics from Cisco Catalyst 9800 Wireless Controllers.

🛡️ Critical State Monitoring: Detects changes such as AP mis-configurations or WLAN enable/disable
🌐 Client Connectivity Tracking: Monitors client signal strength, speed, protocols, traffic and latency
📊 Long-Term Observability: Extends metric retention for historical analysis and wireless trend tracking

It provides pull-based model telemetry as an alternative to standard Streaming Telemetry, leveraging standard RESTCONF APIs to deliver real-time wireless network visibility.

Important

Please enable RESTCONF and HTTPS on the C9800 before using this exporter. Please see:

Cisco IOS XE 17.12 Programmability Configuration Guide — RESTCONF

Quick Start

1. Generate a Basic Auth token

Encode your controller credentials as Base64.

# username:password → Base64
echo -n "admin:your-password" | base64
# Output: YWRtaW46eW91ci1wYXNzd29yZA==

2. Set required environment variables

export WNC_CONTROLLER="wnc1.example.internal"
export WNC_ACCESS_TOKEN="YWRtaW46eW91ci1wYXNzd29yZA=="

3. Run the exporter with Docker

docker run -p 10039:10039 -e WNC_CONTROLLER -e WNC_ACCESS_TOKEN \
  ghcr.io/umatare5/cisco-wnc-exporter

-p: Maps container port 10039/tcp to host port 10039/tcp.
-e: Passes the environment variables into the container.

Tip

If you prefer using binaries, download them from the release page.

Supported Platforms: linux_amd64, linux_arm64, darwin_amd64, darwin_arm64 and windows_amd64

Syntax

NAME:
   cisco-wnc-exporter - Prometheus exporter for Cisco WNC

USAGE:
   cisco-wnc-exporter [global options]

VERSION:
   0.1.0

OPTIONS:
   --dry-run                    Validate configuration without starting the server
   --help, -h                   show help
   --log.format string          Log format (json, text) (default: "json")
   --log.level string           Log level (debug, info, warn, error) (default: "info")
   --version, -v                print the version
   --web.listen-address string  Address to bind the HTTP server to (default: "0.0.0.0")
   --web.listen-port int        Port number to bind the HTTP server to (default: 10039)
   --web.telemetry-path string  Path for the metrics endpoint (default: "/metrics")
   --wnc.access-token string    WNC API access token [$WNC_ACCESS_TOKEN]
   --wnc.cache-ttl duration     WNC API response cache TTL in seconds (default: 55s)
   --wnc.controller string      WNC controller hostname or IP address [$WNC_CONTROLLER]
   --wnc.timeout duration       WNC API request timeout (default: 55s)
   --wnc.tls-skip-verify        Skip TLS certificate verification (default: false)

   # AP Collector Options

   --collector.ap.errors              Enable AP error metrics
   --collector.ap.general             Enable AP general metrics
   --collector.ap.info                Enable AP info metrics
   --collector.ap.info-labels string  Comma-separated list of AP info labels (default: "name,ip")
   --collector.ap.radio               Enable AP radio metrics
   --collector.ap.traffic             Enable AP traffic metrics

   # Client Collector Options

   --collector.client.errors              Enable Client error metrics
   --collector.client.general             Enable Client general metrics
   --collector.client.info                Enable Client info metrics
   --collector.client.info-labels string  Comma-separated list of Client info labels (default: "name,ipv4")
   --collector.client.radio               Enable Client radio metrics
   --collector.client.traffic             Enable Client traffic metrics

   # WLAN Collector Options

   --collector.wlan.config              Enable WLAN config metrics
   --collector.wlan.general             Enable WLAN general metrics
   --collector.wlan.info                Enable WLAN info metrics
   --collector.wlan.info-labels string  Comma-separated list of WLAN info labels (default: "name")
   --collector.wlan.traffic             Enable WLAN traffic metrics

   * Collector Wide Options

   --collector.info-cache-ttl duration  Cache TTL for collector info metrics (default: 30m0s)

   * Internal Collector Options

   --collector.internal.go-runtime  Enable Go runtime metrics collector
   --collector.internal.process     Enable process metrics collector

Configuration

This exporter supports following environment variables:

Environment Variable	Description
`WNC_CONTROLLER`	WNC controller hostname or IP address (required)
`WNC_ACCESS_TOKEN`	WNC API access token (required)

Metrics

This exporter collects wireless network metrics from Cisco C9800 WNC using following collectors:

AP Collector - For RF foundation and radio performance
Client Collector - For user experience quality and connection performance
WLAN Collector - For logical SSID performance and parameter checks

All collectors have multiple modules to allow fine-grained control over which metrics to collect.

Important

All collectors are disabled by default to reduce load on both Prometheus and the Cisco C9800 WNC. Because a Cisco C9800 WNC typically manages hundreds or even thousands of APs and clients, selective monitoring is essential to maintain performance and stability.

Cisco C9800 WNC caching (55 seconds)

API responses are cached for 55 seconds
This TTL is tuned for both Prometheus scrape intervals and AP metric reporting intervals
You can adjust it with the --wnc.cache-ttl flag

Prometheus info metrics caching (1800 seconds)

Info metrics are cached for 1800 seconds (30 minutes)
Wireless clients often roam between APs, causing the ap label to change frequently
You can adjust it with the --collector.info-cache-ttl flag

AP Collector

AP collector focus on RF foundation and radio performance.

Module	Metric	Type	Description
general	`wnc_ap_admin_state`	Gauge	Admin state (0=disabled, 1=enabled)
general	`wnc_ap_oper_state`	Gauge	Operational state (0=down, 1=up)
general	`wnc_ap_radio_state`	Gauge	Radio state (0=down, 1=up)
general	`wnc_ap_config_state`	Gauge	Tag config state (0=valid, 1=invalid)
general	`wnc_ap_uptime_seconds`	Gauge	AP uptime in seconds
general	`wnc_ap_cpu_utilization_percent`	Gauge	CPU utilization percentage
general	`wnc_ap_memory_utilization_percent`	Gauge	Memory utilization percentage
radio	`wnc_ap_channel_number`	Gauge	Operating channel number
radio	`wnc_ap_channel_width_mhz`	Gauge	Channel bandwidth (MHz)
radio	`wnc_ap_tx_power_dbm`	Gauge	Current transmit power (dBm)
radio	`wnc_ap_tx_power_max_dbm`	Gauge	Maximum TX power capability (dBm)
radio	`wnc_ap_noise_floor_dbm`	Gauge	Channel noise floor (dBm)
radio	`wnc_ap_channel_utilization_percent`	Gauge	Channel utilization percentage (CCA)
radio	`wnc_ap_rx_utilization_percent`	Gauge	RX utilization percentage
radio	`wnc_ap_tx_utilization_percent`	Gauge	TX utilization percentage
radio	`wnc_ap_noise_utilization_percent`	Gauge	Noise channel utilization percentage
traffic	`wnc_ap_clients_total`	Gauge	Associated clients count (calclulated)
traffic	`wnc_ap_rx_bytes_total`	Counter	Total received bytes (calculated)
traffic	`wnc_ap_tx_bytes_total`	Counter	Total transmitted bytes (calculated)
traffic	`wnc_ap_rx_packets_total`	Counter	Total received packets
traffic	`wnc_ap_tx_packets_total`	Counter	Total transmitted packets
traffic	`wnc_ap_total_tx_frames_total`	Counter	Total TX frames
traffic	`wnc_ap_data_rx_frames_total`	Counter	Data RX frames
traffic	`wnc_ap_data_tx_frames_total`	Counter	Data TX frames
traffic	`wnc_ap_management_rx_frames_total`	Counter	Management RX frames
traffic	`wnc_ap_management_tx_frames_total`	Counter	Management TX frames
traffic	`wnc_ap_control_rx_frames_total`	Counter	Control RX frames *(1)**
traffic	`wnc_ap_control_tx_frames_total`	Counter	Control TX frames *(1)**
traffic	`wnc_ap_multicast_rx_frames_total`	Counter	Multicast RX frames *(1)**
traffic	`wnc_ap_multicast_tx_frames_total`	Counter	Multicast TX frames *(1)**
traffic	`wnc_ap_rts_success_total`	Counter	Successful RTS transmissions *(1)**
errors	`wnc_ap_tx_errors_total`	Counter	Total TX errors *(1)**
errors	`wnc_ap_rx_errors_total`	Counter	Total RX errors *(1)**
errors	`wnc_ap_tx_drops_total`	Counter	Total TX drops (calculated)
errors	`wnc_ap_tx_retries_total`	Counter	Total TX retries (calculated)
errors	`wnc_ap_transmission_failures_total`	Counter	Failed transmission attempts *(1) (2)*
errors	`wnc_ap_duplicate_frames_total`	Counter	Duplicate frames received
errors	`wnc_ap_fcs_errors_total`	Counter	Frame Check Sequence errors
errors	`wnc_ap_fragmentation_rx_total`	Counter	RX fragmented packets *(1)**
errors	`wnc_ap_fragmentation_tx_total`	Counter	TX fragmented packets *(1)**
errors	`wnc_ap_rts_failures_total`	Counter	RTS failures *(1)**
errors	`wnc_ap_decryption_errors_total`	Counter	Decryption errors *(1)**
errors	`wnc_ap_mic_errors_total`	Counter	MIC errors *(1)**
errors	`wnc_ap_wep_undecryptable_total`	Counter	WEP undecryptable frames *(1)**
errors	`wnc_ap_coverage_hole_events_total`	Counter	Coverage hole events
errors	`wnc_ap_last_radar_on_radio_at`	Gauge	Last radar detection unix timestamp
errors	`wnc_ap_radio_reset_total`	Counter	Radio reset count

*1 Metrics consistently returning zero values on Cisco IOS-XE 17.12.6a with FlexConnect AP

The following metrics consistently return zero values due to implementation limitations:

wnc_ap_(tx|rx)_errors_total
wnc_ap_control_(rx|tx)_frames_total
wnc_ap_decryption_errors_total
wnc_ap_fragmentation_(rx|tx)_total
wnc_ap_mic_errors_total
wnc_ap_multicast_(rx|tx)_frames_total
wnc_ap_rts_(success|failures)_total
wnc_ap_transmission_failures_total
wnc_ap_wep_undecryptable_total

This was verified through direct RESTCONF API access to the live WNC environment:

❯ curl -sS -k -H "Authorization: Basic $WNC_ACCESS_TOKEN" \
           -H "Accept: application/yang-data+json" \
           "https://$WNC_CONTROLLER/restconf/data/Cisco-IOS-XE-wireless-access-point-oper:access-point-oper-data/radio-oper-stats" \
           | jq '.["Cisco-IOS-XE-wireless-access-point-oper:radio-oper-stats"]'
[
  {
    "ap-mac": "aa:bb:cc:11:22:30",
    "slot-id": 0,
    "aid-user-list": 2,
    "tx-fragment-count": 0,
    "multicast-tx-frame-cnt": 0,
    "failed-count": 0,
    "retry-count": 79738,
    "multiple-retry-count": 0,
    "frame-duplicate-count": 0,
    "rts-success-count": 0,
    "rts-failure-count": 0,
    "ack-failure-count": 0,
    "rx-fragment-count": 0,
    "multicast-rx-frame-cnt": 0,
    "fcs-error-count": 324978,
    "tx-frame-count": 2457172,
    "wep-undecryptable-count": 0,
    "rx-error-frame-count": 0,
    "mac-mic-err-frame-count": 0,
    "rx-mgmt-frame-count": 2084196,
    "rx-ctrl-frame-count": 0,
    "rx-data-frame-count": 3121831,
    "tx-mgmt-frame-count": 2345422,
    "tx-ctrl-frame-count": 0,
    "tx-data-frame-count": 2457172,
    "rx-data-pkt-count": 0,
    "tx-data-pkt-count": 0,
    "noise-floor": 0,
    "ap-radio-stats": {
      "stuck-ts": "1970-01-01T00:00:00+00:00",
      "last-ts": "2025-09-23T10:25:19+00:00",
      "num-radio-stuck-reset": 0
    },
    "mac-decry-err-frame-count": 0
  },
  {
    "ap-mac": "aa:bb:cc:11:22:30",
    "slot-id": 1,
    "aid-user-list": 3,
    "tx-fragment-count": 0,
    "multicast-tx-frame-cnt": 0,
    "failed-count": 0,
    "retry-count": 216205,
    "multiple-retry-count": 0,
    "frame-duplicate-count": 0,
    "rts-success-count": 0,
    "rts-failure-count": 0,
    "ack-failure-count": 0,
    "rx-fragment-count": 0,
    "multicast-rx-frame-cnt": 0,
    "fcs-error-count": 15398676,
    "tx-frame-count": 17767278,
    "wep-undecryptable-count": 0,
    "rx-error-frame-count": 0,
    "mac-mic-err-frame-count": 0,
    "rx-mgmt-frame-count": 19155,
    "rx-ctrl-frame-count": 0,
    "rx-data-frame-count": 6552508,
    "tx-mgmt-frame-count": 4628753,
    "tx-ctrl-frame-count": 0,
    "tx-data-frame-count": 17767278,
    "rx-data-pkt-count": 0,
    "tx-data-pkt-count": 0,
    "noise-floor": 0,
    "ap-radio-stats": {
      "stuck-ts": "1970-01-01T00:00:00+00:00",
      "last-ts": "2025-09-23T10:25:19+00:00",
      "num-radio-stuck-reset": 0
    },
    "mac-decry-err-frame-count": 0
  },
  <snip>
]

*2 Cisco Bug CSCwn96363 - AckFailureCount vs FailedCount

According to Cisco Bug CSCwn96363, there are redundant counters in the wireless statistics:

Issue: AckFailureCount always returns 0 and does not increment
Root Cause: AckFailureCount and FailedCount represent the same counter
Solution: Use FailedCount instead of AckFailureCount for accurate transmission failure statistics

This exporter implements the recommended workaround by using failed-count from the RESTCONF API for the wnc_ap_transmission_failures_total metric.

Tip

info module provides wnc_ap_info contains following labels to join with other metrics:

Labels	Description	Example Value	Default	Required
`mac`	AP wireless MAC address	`aa:bb:cc:dd:ee:f0`	Yes	Yes
`name`	AP hostname	`TEST-AP01`	Yes	No
`ip`	AP IP address	`192.168.1.10`	Yes	No
`radio`	Radio identifier	`0`, `1`, `2`	Yes	Yes
`band`	Radio band	`2.4`, `5`, `6`	No	No
`model`	AP model	`AIR-AP1815I-Q-K9`	No	No
`serial`	AP serial number	`FGL1234ABCD`	No	No
`sw_version`	Software version	`17.12.5.41`	No	No
`eth_mac`	Ethernet MAC address	`aa:bb:cc:00:11:22`	No	No

Use this info metric to add contextual labels to other metrics in PromQL queries:

wnc_ap_radio_admin_state * on(mac,radio) group_left(name,ip) wnc_ap_info

Client Collector

Client collector focus on user experience quality and connection performance.

Module	Metric	Type	Description
general	`wnc_client_state`	Gauge	Client state (0-2)
general	`wnc_client_state_transition_seconds`	Gauge	State transition latency
general	`wnc_client_power_save_state`	Gauge	Power save state (0=active, 1=save)
radio	`wnc_client_protocol`	Gauge	802.11 protocol (5=ac, 6=ax)
general	`wnc_client_uptime_seconds`	Gauge	Connection duration
radio	`wnc_client_mcs_index`	Gauge	MCS index (-1=legacy, 0-11)
radio	`wnc_client_spatial_streams`	Gauge	Spatial streams count
radio	`wnc_client_speed_mbps`	Gauge	Connection throughput
radio	`wnc_client_rssi_dbm`	Gauge	Signal strength (dBm)
radio	`wnc_client_snr_decibels`	Gauge	Signal-to-noise ratio (dB)
traffic	`wnc_client_rx_bytes_total`	Counter	Received bytes
traffic	`wnc_client_tx_bytes_total`	Counter	Transmitted bytes
traffic	`wnc_client_rx_packets_total`	Counter	Received packets
traffic	`wnc_client_tx_packets_total`	Counter	Transmitted packets
errors	`wnc_client_retry_ratio_percent`	Gauge	Retry rate percentage
errors	`wnc_client_tx_retries_total`	Counter	TX retries count *(3)**
errors	`wnc_client_data_retries_total`	Counter	Data retries by mobile station
errors	`wnc_client_excessive_retries_total`	Counter	Excessive retries count *(3)**
errors	`wnc_client_rts_retries_total`	Counter	RTS retries count *(3)**
errors	`wnc_client_duplicate_received_total`	Counter	Duplicate packets received *(3)**
errors	`wnc_client_tx_drops_total`	Counter	TX drops count
errors	`wnc_client_decryption_failed_total`	Counter	Decryption failures
errors	`wnc_client_mic_mismatch_total`	Counter	MIC mismatch errors *(3)**
errors	`wnc_client_mic_missing_total`	Counter	MIC missing errors *(3)**
errors	`wnc_client_policy_errors_total`	Counter	Policy errors *(3)**
errors	`wnc_client_rx_group_counter_total`	Counter	RX group counter *(3)**

*3 Client error metrics consistently returning zero values on Cisco IOS-XE 17.12.6a with FlexConnect AP

The following client error metrics consistently return zero values due to implementation limitations:

wnc_client_duplicate_received_total
wnc_client_excessive_retries_total
wnc_client_mic_mismatch_total
wnc_client_mic_missing_total
wnc_client_policy_errors_total
wnc_client_rts_retries_total
wnc_client_rx_group_counter_total
wnc_client_tx_retries_total

This was verified through direct RESTCONF API access to the live WNC environment:

❯ curl -sS -k -H "Authorization: Basic $WNC_ACCESS_TOKEN" \
           -H "Accept: application/yang-data+json" \
           "https://$WNC_CONTROLLER/restconf/data/Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats" \
           | jq '.["Cisco-IOS-XE-wireless-client-oper:traffic-stats"][0]' | \
           jq '{duplicate_rcv, tx_excessive_retries, mic_mismatch, mic_missing, policy_errs, rts_retries, rx_group_counter, tx_retries}'
{
  "duplicate_rcv": "0",
  "tx_excessive_retries": "0",
  "mic_mismatch": "0",
  "mic_missing": "0",
  "policy_errs": "0",
  "rts_retries": "0",
  "rx_group_counter": "0",
  "tx_retries": "0"
}

Tip

info module provides wnc_client_info contains following labels to join with other metrics:

Labels	Description	Example Value	Default	Required
`mac`	MAC address	`aa:bb:cc:12:34:56`	Yes	Yes
`ap`	Access point identifier	`TEST-AP01`	No	No
`band`	Radio band	`2.4`, `5`, `6`	No	No
`wlan`	WLAN ESSID name	`labo-wifi`	No	No
`name`	Device Classification Name	`MacBook Pro (14-inch, 2021)`	Yes	No
`username`	EAP authentication identity	`john.doe@example.com`	No	No
`ipv4`	Client IPv4 address	`192.168.1.100`	Yes	No
`ipv6`	Client IPv6 address	`2001:db8::1`	No	No

Use this info metric to add contextual labels to other metrics in PromQL queries:

wnc_client_state * on(mac) group_left(ap,wlan,name) wnc_client_info

WLAN Collector

WLAN collector focus on logical SSID performance and parameter checks.

Module	Metric	Type	Description
general	`wnc_wlan_enabled`	Gauge	WLAN status
traffic	`wnc_wlan_clients_total`	Gauge	Connected clients count (calclulated)
traffic	`wnc_wlan_rx_bytes_total`	Counter	WLAN received bytes (calclulated)
traffic	`wnc_wlan_tx_bytes_total`	Counter	WLAN transmitted bytes (calclulated)
config	`wnc_wlan_auth_psk_enabled`	Gauge	PSK authentication enabled
config	`wnc_wlan_auth_dot1x_enabled`	Gauge	802.1x authentication enabled
config	`wnc_wlan_auth_dot1x_sha256_enabled`	Gauge	802.1x SHA256 auth enabled
config	`wnc_wlan_wpa2_enabled`	Gauge	WPA2 support enabled
config	`wnc_wlan_wpa3_enabled`	Gauge	WPA3 support enabled
config	`wnc_wlan_session_timeout_seconds`	Gauge	Session timeout duration
config	`wnc_wlan_load_balance_enabled`	Gauge	Load balancing enabled
config	`wnc_wlan_11k_neighbor_list_enabled`	Gauge	802.11k neighbor list enabled
config	`wnc_wlan_client_steering_enabled`	Gauge	6GHz client steering enabled
config	`wnc_wlan_central_switching_enabled`	Gauge	Central switching enabled
config	`wnc_wlan_central_authentication_enabled`	Gauge	Central authentication enabled
config	`wnc_wlan_central_dhcp_enabled`	Gauge	Central DHCP enabled
config	`wnc_wlan_central_association_enabled`	Gauge	Central association enabled

Tip

info module provides wnc_wlan_info contains following labels to join with other metrics:

Labels	Description	Example Value	Default	Required
`id`	WLAN identifier	`1`, `5`, `10`	Yes	Yes
`name`	WLAN ESSID name	`labo-wifi`	Yes	No

Use this info metric to add contextual labels to other metrics in PromQL queries:

wnc_wlan_enabled * on(id) group_left(name) wnc_wlan_info

Usecase

There are multiple ways to run the exporter, including direct binary execution and Docker containerization.

Exporter Configuration

Visit http://localhost:10039/ to verify the exporter is running.

Basic Usage - No Collectors

The exporter starts without any collectors enabled by default:

$ WNC_CONTROLLER="wnc1.example.internal"
$ WNC_ACCESS_TOKEN="foobarbaz"
$ ./cisco-wnc-exporter
time="2025-04-13T18:50:54Z" level=info msg="Starting the cisco-wnc-exporter on port 10039."

Essential Usage

Enable essential collectors for basic monitoring:

$ WNC_CONTROLLER="wnc1.example.internal"
$ WNC_ACCESS_TOKEN="foobarbaz"
$ ./cisco-wnc-exporter \
    --collector.ap.general --collector.client.general --collector.wlan.general

Complete Usage

For complete monitoring, see .air.toml which enables all collectors with maximum info-labels.

Prometheus Configuration

This section describes how to configure Prometheus to scrape metrics from the controld-exporter.

Add the job config to your Prometheus YAML file using examples/prometheus.yml as a reference.

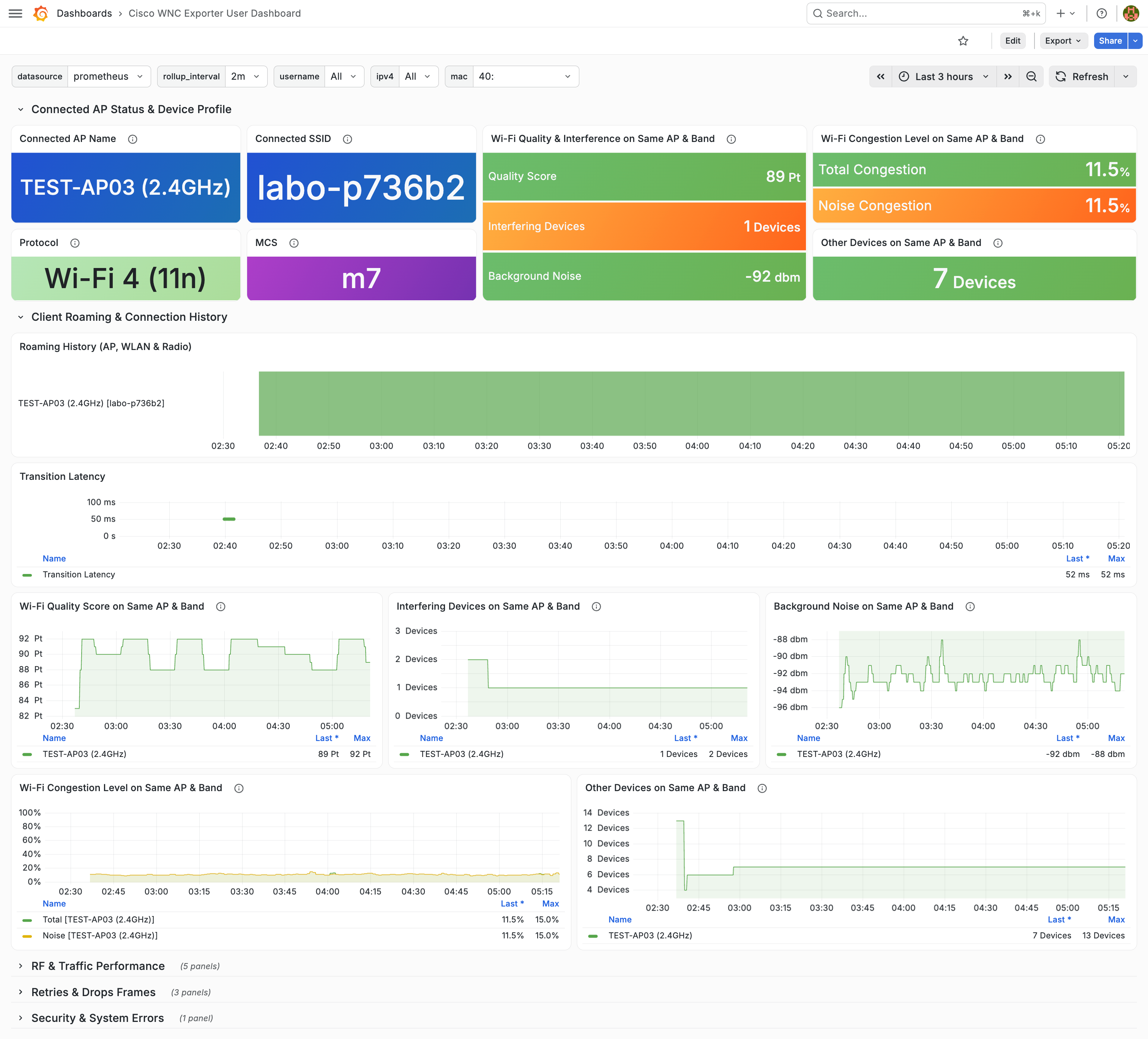

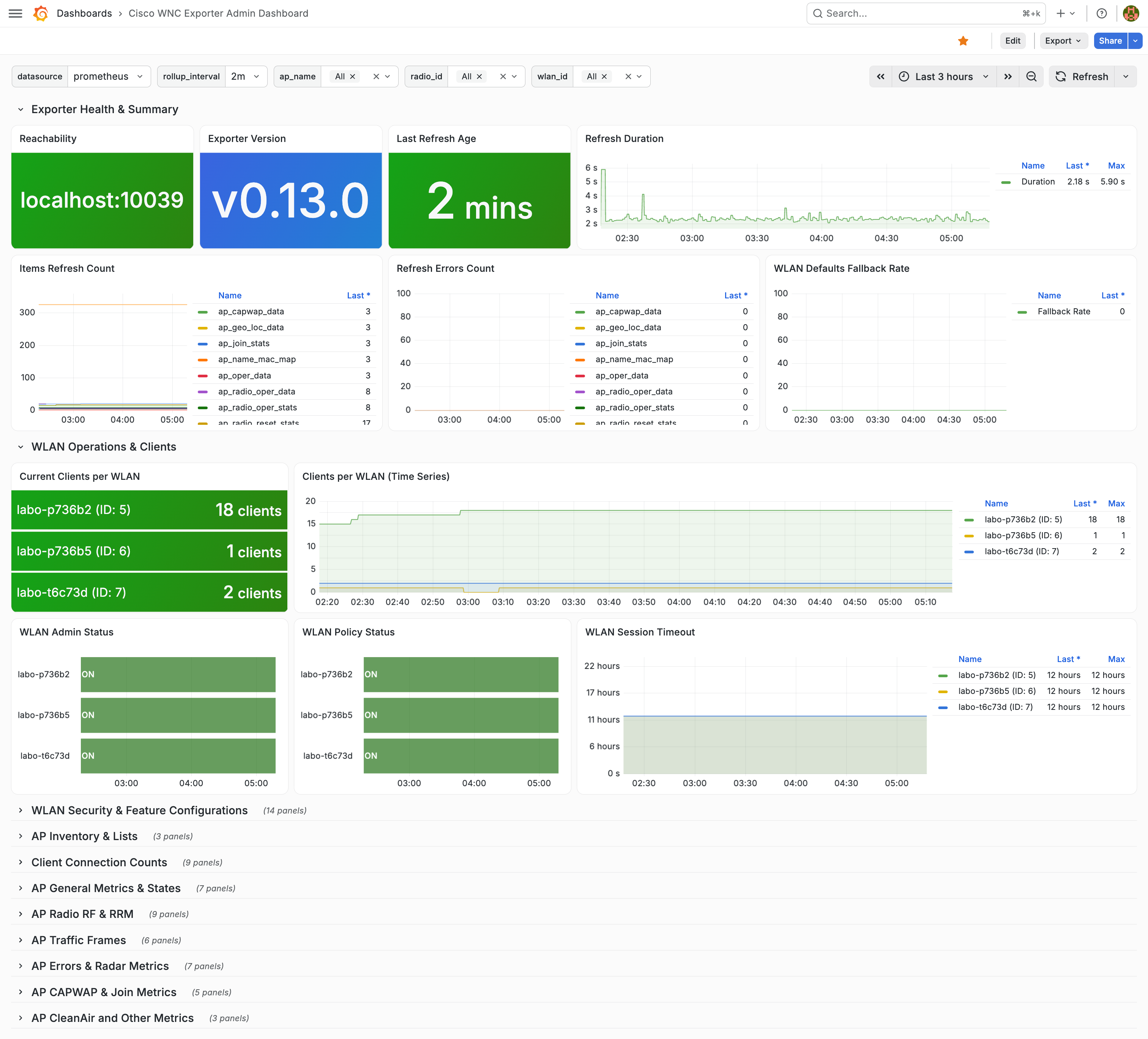

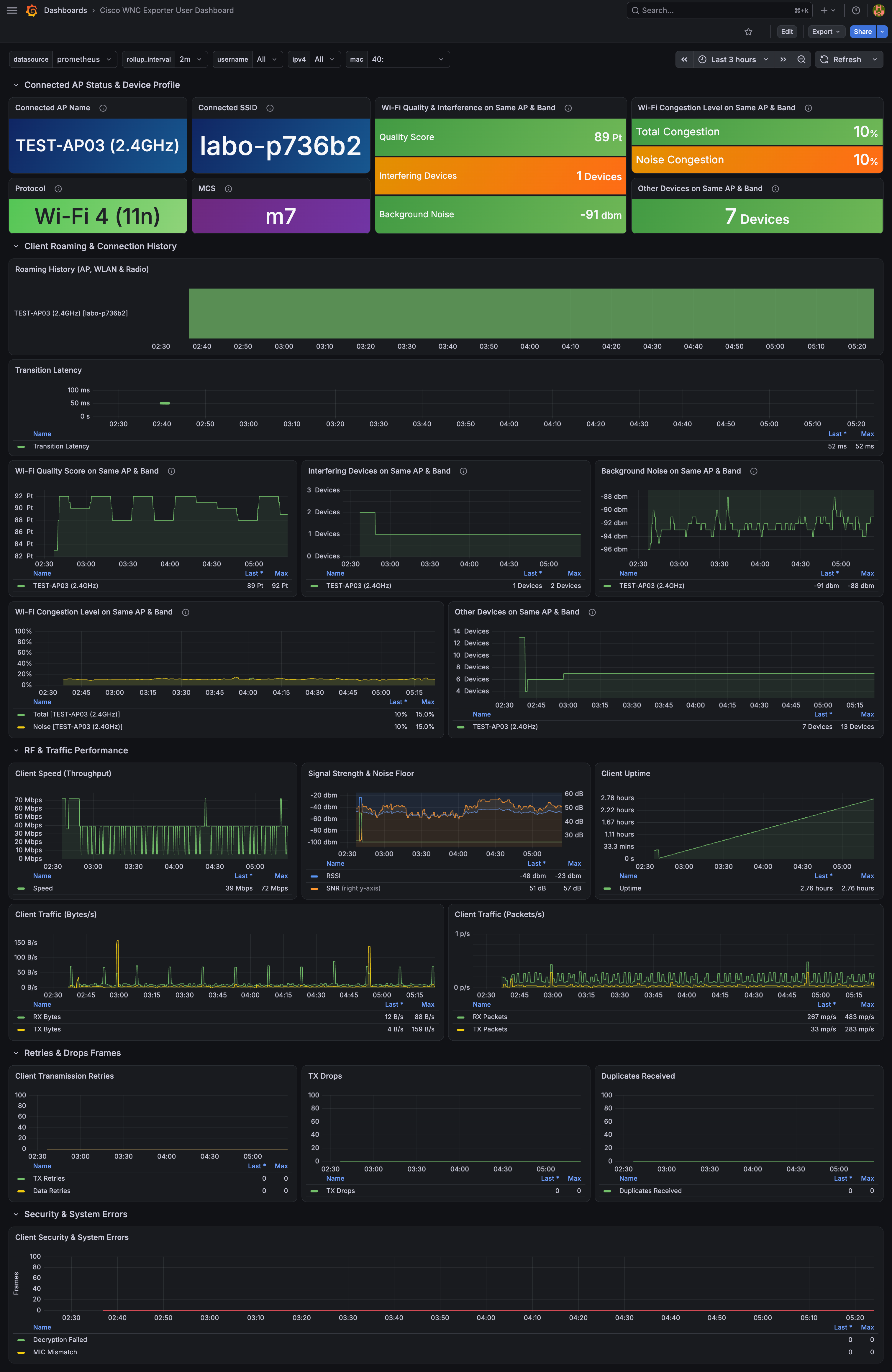

Example Grafana Dashboard

Development

Commands

The following make commands are available for development and testing:

Command	Description
`make help`	Display available targets and requirements
`make build`	Build the binary to `./tmp/cisco-wnc-exporter`
`make lint`	Run golangci-lint and tidy go.mod
`make test-unit`	Run unit tests with coverage using gotestsum
`make test-unit-coverage`	Generate HTML coverage report
`make clean`	Remove build artifacts and backup files
`make image`	Build Docker image

Build

The repository includes a ready to use Dockerfile. To build a new Docker image:

make image

This creates an image named ghcr.io/$USER/cisco-wnc-exporter and exposes 10039/tcp.

Release

To release a new version, follow these steps:

Update the version in the VERSION file.
Submit a pull request with the updated VERSION file.

Once the pull request is merged, the GitHub Workflow automatically creates and pushes a new tag, after which I manually publish a release using the GitHub Actions release workflow.

Contribution

Fork (https://github.com/umatare5/cisco-wnc-exporter/fork)
Create a feature branch
Commit your changes
Rebase your local changes against the master branch
Create a new Pull Request

Acknowledgement

I launched this project with the help of GitHub Copilot Coding Agent, and I am grateful to the global developer community for their contributions to open source projects and public repositories.

Licence

MIT
