Field Selection (DB Get Step)

Use the Field Selection tab of the DB Get customizer window to identify the fields within the selected query and to choose the variables in which you want to store the value for each field.

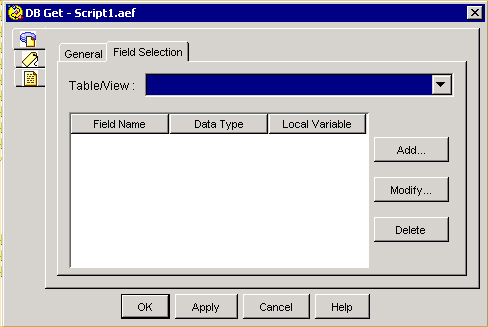

DB Get Customizer Window—Field Selection Tab

The following table describes the properties of the Field Selection tab of the DB Get customizer:

DB Get Properties—Field Selection Tab

Properties / Buttons

Description

Table/View

Variable indicating the name of the table from the database selected on the General tab.

Field Name/Data Type/Local Variable

Field selection information:

  • Field Name—Name of the field in the selected database.

  • Data Type—(Display only) Data type of the variable.

  • Local Variabke—variable that stores the values of the associated field.

Add / Modify (buttons)

Use these buttons to access the Add Database Field dialog box. Use the dialog to add or modify settings and click OK when finished

Note

An entry can be directly edited in the table list by double clicking on it. To sort the entries, click on the column header.

Delete (button)

To remove database field information, highlight a value in the list and click Delete.
