Filter tab (Simple Recognition step)

Use the Filter tab of the Simple Recognition step to set the timeout setting, maximum number of retries, and the Flush Input Buffer option.

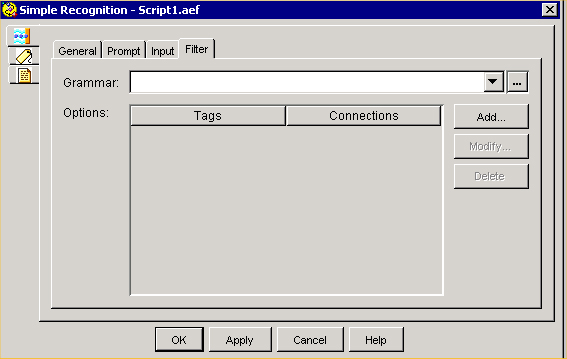

Simple Recognition Customizer Window—Filter Tab

The following table describes the properties of the Filter tab of the Simple Recognition customizer window:

Simple Recognition Properties—Filter Tab

Properties / Buttons

Description

Grammar

Variable or expression indicating the grammar to be used in the Simple Recognition step.

Options (Tags and Connections)

List of options in the menu offered to the caller. Tags are mapped to output connections to determine execution of branching output paths.

Add / Modify (buttons)

Use these buttons to access the Add or Modify Option dialog box. Use the dialog to specify the following:

  • Output Connection—A name for the option.

  • Tag—Value mapped to the Output Connection that determines branching.

Note

Tag values entered must correspond to the tag values defined in the grammar

When done, click OK.

Note

An entry can be directly edited in the table list by double clicking on it. To sort the entries, click on the column header.
