General tab (DB Write step)

Use the General tab of the DB Write customizer window to identify the DB Resource Name variable and the database that you want to update.

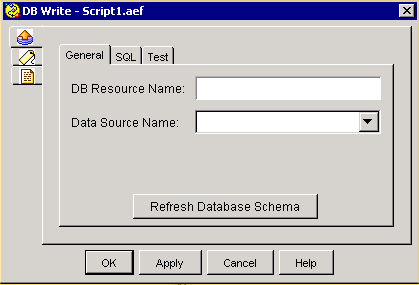

DB Write Customizer Window—General Tab

The following table describes the properties of the General tab of the DB Write customizer window:

DB Write Properties—General Tab
Properties / Buttons	Description
DB Resource Name	Name identifying this database query.
Data Source Name	Variable indicating the database you want to update when you are defining a new query.
Refresh Database Schema (button)	If the Data Source Name drop-down menu is empty, click this button that allows you to download the schema from the Cisco Unified CCX Engine.
