If ASR

Continue the aa.aef script by dragging an If step from the General palette to the Design pane, and dropping it over the Label step.

Then configure the If step to determine which segment of the script handles the contact, depending on whether or not the system is ASR-enabled and Name To User capability is enabled or supported.

The If step evaluates the expression “asr || AlwaysEnableDialByName” (“either ASR is enabled, or the system allows the caller to enter the person’s name to which they would like to be connected”).

Note	For an example of configuring the If step, see “The If Step” section.

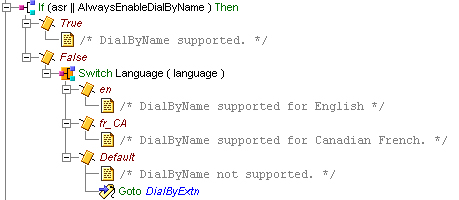

Figure shows the If step’s two output branches, True and False.
