Send Digit String Step

Use the Send Digit String step to out-pulse back to the caller a specified set of DTMF digits.

The DTMF digits are sent out-of-band and out-pulsed in-band by the gateways.

Note	You can insert a “,” (comma) in the sequence of DTMF digits to instruct the script to insert a 1-second pause before continuing to out-pulse the remaining DTMF digits. You can use multiple commas to increase the length of the pause.

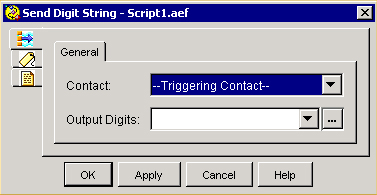

Figure shows the Send Digit String customizer window.

The following table describes the properties of the Send Digit String customizer window:

Properties / Buttons	Description
Contact	Variable indicating the contact that triggers the execution of the step. Default is Triggering Contact, unless another contact is specified.
Output Digits	Variable or expression indicating the sequence of DTMF digits to be sent.
