IOSvL2

Overview

IOSvL2 is an implementation of Cisco IOS layer-2 switching code that runs as a full virtual machine. IOSvL2 images are based on the DSGS code branch and support up to 16 GigabitEthernet interfaces. IOSvL2 is primarily a Layer-2 switch, but Layer-3 control plane and data-plane functionality is also present in the image.

Limitations

IOSvL2 is performance limited when forwarding traffic. Forwarding performance has been tested with iperf running a basic test.

Achieved throughputs are ~2.3 Mb/s when passing traffic through one IOSvL2 switch, and ~2.2 Mb/s when chained over two switches. Baseline throughput bypassing the switch was ~595 Mb/s.

IOSvL2 Features

Supported Features

The following features are included in the IOSvL2 image:

  • Layer-2 forwarding
  • Switchport
  • 802.1q trunk, 802.1q VLANs
  • Spanning tree
  • Port-Channel (pagp and lacp)
  • 802.1x passthrough
  • Port-ACLs
  • Dynamic ARP inspection
  • DHCP snooping
  • IP device tracking
  • Switched Virtual Interfaces (SVI)
  • Layer-3 forwarding over SVIs
  • Routing protocol support (ISIS is NOT supported)
  • VTP v1-3
  • PVST
  • QoS
  • Inter-vlan routing
  • VLAN access maps (VACLs / access control lists for VLANs)
  • ACL functionality for both layer-2 and layer-3 protocol packets
  • Dynamic Trunking Protocol support
  • Switchport protected mode

Unsupported Features

The following features are not supported by IOSvL2 and are known not to work:

  • Port mirroring (SPAN)
  • Private VLANs

Features Tested with CML

Each CML release is tested with the bundled version of IOSvL2. The tests validate the following features:

Test Name Result
CDP Pass
SVI Pass
Port-security Pass
Autorecovery Pass
Port-channel Pass
DHCP Pass
DHCP Snooping Pass
Spanning-tree Pass
HSRP Pass
Loopback Pass
Routed port Pass

The lab used for the tests is IOSvL2 Feature Tests, which is one of the sample labs included with CML on the Tools > Sample Labs page.

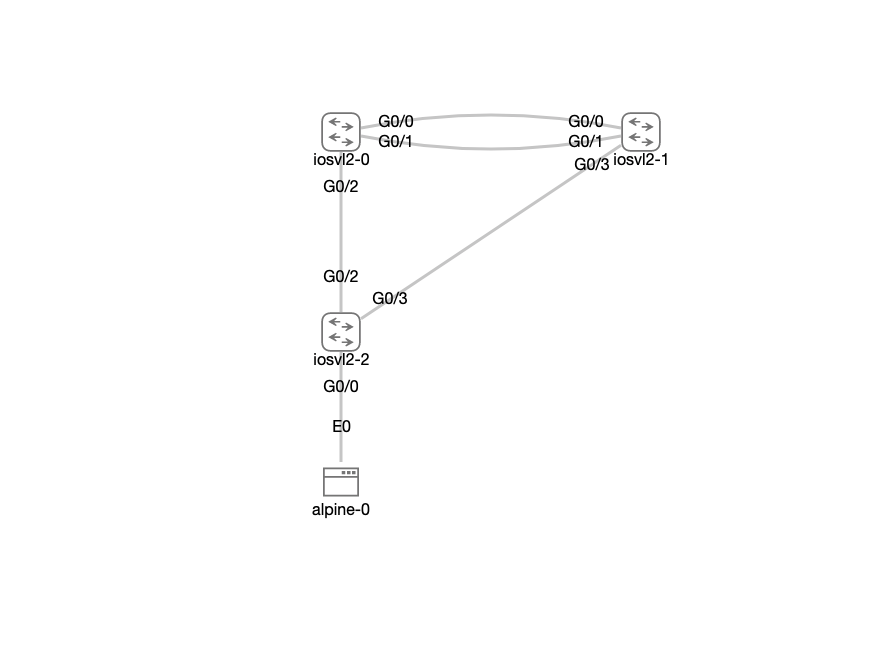

IOSvL2 Feature Test Topology

CDP

  • peer device is detected on the interface and listed in the CDP table
  • Neighbor type: IOSvL2
iosvl2-2#show cdp neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                  D - Remote, C - CVTA, M - Two-port Mac Relay

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
iosvl2-0         Gig 0/2           133             R S I            Gig 0/2
iosvl2-1         Gig 0/3           174              S I             Gig 0/3

SVI

  • Interface VLAN 100 configured with IP address 192.168.253.2
  • Alpine Linux VM in VLAN 100 can successfully ping the interface vlan 100
alpine-0:~$ ping 192.168.253.2
PING 192.168.253.2 (192.168.253.2): 56 data bytes
64 bytes from 192.168.253.2: seq=0 ttl=42 time=7.491 ms
64 bytes from 192.168.253.2: seq=1 ttl=42 time=3.528 ms
64 bytes from 192.168.253.2: seq=2 ttl=42 time=3.488 ms
64 bytes from 192.168.253.2: seq=3 ttl=42 time=4.045 ms

Port-security

  • Port-security configured on Gig0/0 interface on iosvl2-2 switch
  • Violation mode set to shutdown
  • Verification: Interface goes to err-disabled mode if there is a violation
  • Autorecovery also works, port goes back up if there is no violation

Port-channel

  • Links between two IOSvL2 switches grouped into etherchannel using LACP
iosvl2-0#show etherchannel summary
Number of channel-groups in use: 1
Number of aggregators:           1

Group  Port-channel  Protocol    Ports
------+-------------+-----------+-----------------------------------------------
1      Po1(SU)         LACP      Gi0/0(P)    Gi0/1(P)

DHCP

  • DHCP pool configured on IOSvL2 switch
  • Alpine Linux VM successfully obtains IP address
udhcpc: sending discover
udhcpc: sending select for 192.168.253.6
udhcpc: lease of 192.168.253.6 obtained, lease time 86400

DHCP SNOOPING

  • Switch successfully blocks DHCP messages on untrusted ports
  • VM always gets IP address from the trusted DHCP

SPANNING-TREE

  • Spanning-tree successfully calculates a loop-free topology for every VLAN
iosvl2-2: show spanning-tree vlan 100
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Desg FWD 4         128.1    P2p
Gi0/2               Root FWD 4         128.3    P2p
Gi0/3               Altn BLK 4         128.4    P2p

HSRP

  • HSRP configured on SVI interfaces on two IOSvL2 switches
  • Verification: Alpine Linux VM can successfully ping the Virtual IP address
iosvl2-0#show standby brief
                     P indicates configured to preempt.
                     |
Interface   Grp  Pri P State   Active          Standby         Virtual IP
Vl100       1    100 P Active  local           192.168.253.3   192.168.253.1

Loopback

  • Loopback interface configured on IOSvL2 switch
Loopback0              172.31.255.1    YES manual up                    up

Routed port

  • Interface gig0/1 on IOSvL2 configured as routed port
  • Verification: Ping
iosvl2-2#show ip int br
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     unassigned      YES unset  up                    up
GigabitEthernet0/1     192.168.253.4   YES manual up                    up
