Read Call Routing Request

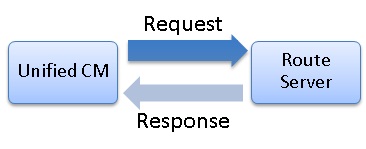

Unified CM sends the eXtensible Access Control Markup Language (XACML) based routing request over HTTP or HTTPS using the POST method. The XACML requests comply with XACML v2.0 standard.
It contains the following information about the call:
- Calling number
- Transformed calling number *
- Called number or dialed digits
- Transformed called number *
- Type of the triggering point
* The number that Unified CM plans to convert (transform) the calling and called number to.
In reference dial plans, the transformed value is usually the globalized number of the calling and called party
Format
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
POST
<Request-URI> HTTP/1.1Host:
<Route-Server>:<port>Accept:
*/*Content-type:
text/xml; charset=ISO-8859-1methodName:
<string>User-Agent:
CiscoUCM-HttpClient/1.0Connection:Keep-Alive
Content-Length:
<length><!--?xml
version="1.0" encoding="UTF-8"?-->
<request xmlns="urn:oasis:names:tc:xacml:2.0:context:schema:os"><subject subjectcategory="urn:oasis:names:tc:xacml:1.0:subject-category:access-subject"><attribute attributeid="urn:oasis:names:tc:xacml:1.0:subject:role-id"
datatype="http://www.w3.org/2001/XMLSchema#string"
issuer="requestor"><attributevalue>[string]</attributevalue></attribute><attribute attributeid="urn:Cisco:uc:1.0:callingnumber"
datatype="http://www.w3.org/2001/XMLSchema#string"><attributevalue>[number]</attributevalue></attribute><attribute attributeid="urn:Cisco:uc:1.0:callednumber"
datatype="http://www.w3.org/2001/XMLSchema#string"><attributevalue>[number]</attributevalue></attribute><attribute attributeid="urn:Cisco:uc:1.0:transformedcgpn"
datatype="http://www.w3.org/2001/XMLSchema#string"><attributevalue>[number]</attributevalue></attribute><attribute attributeid="urn:Cisco:uc:1.0:transformedcdpn"
datatype="http://www.w3.org/2001/XMLSchema#string"><attributevalue>[number]</attributevalue></attribute></subject><resource><attribute attributeid="urn:oasis:names:tc:xacml:1.0:resource:resource-id"
datatype="http://www.w3.org/2001/XMLSchema#anyURI"><attributevalue>[string]</attributevalue></attribute></resource><action><attribute attributeid="urn:oasis:names:tc:xacml:1.0:action:action-id"
datatype="http://www.w3.org/2001/XMLSchema#anyURI"><attributevalue>[URI]</attributevalue></attribute></action><environment><attribute attributeid="urn:Cisco:uc:1.0:triggerpointtype"
datatype="http://www.w3.org/2001/XMLSchema#string"><attributevalue>[string]</attributevalue></attribute></environment></request> |
Learn how to Generate
Call Routing Response.
