Connecting to a Node’s Console¶
Once a simulation is started, you may connect to the console or, for applicable nodes, the VNC server for a node.
Tip
CML provides three ways to access the console for a running node:
the Panes pane in the Workbench (see below)
the Console Server
Procedure
In the Workbench, right-click the node for which you want to open a console.
The Node right-click menu is opened.
Click the Console menu item.
The node’s Console tab in the Panes pane is opened.

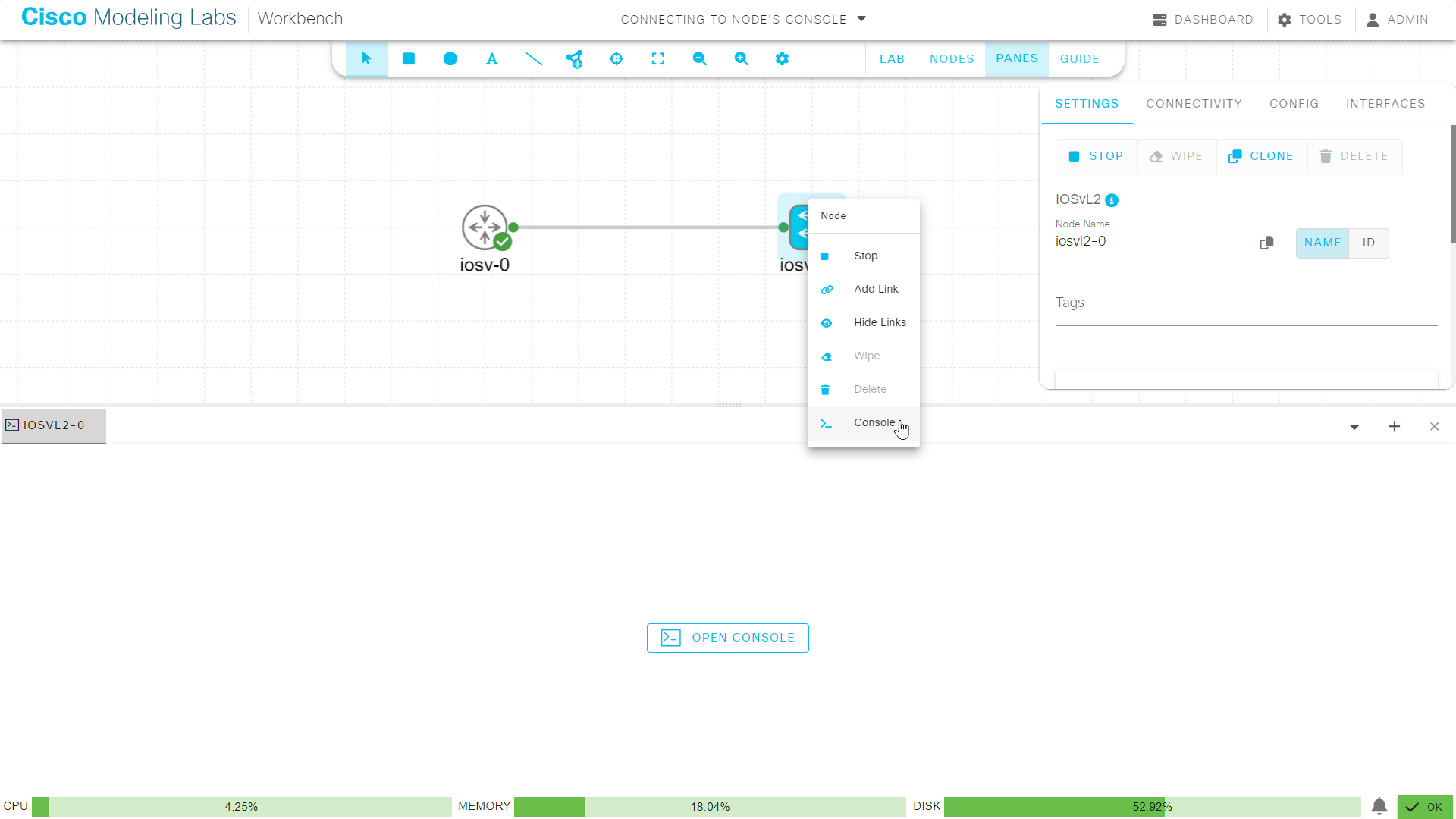

Using the node’s right-click menu to open the Console pane¶
Click the Open Console button in the Console pane at the bottom of the Workbench to activate the console connection.
